Strater-地球物理制图、建模和分析软件包

5版最新更新

Strater 5将测井曲线,井眼和横截面图绘制到一个易于使用的新水平。 Strater用户将在功能的各个方面都进行重大改进,以提高日志生产速度和质量。 本节重点介绍主要的添加和更改。

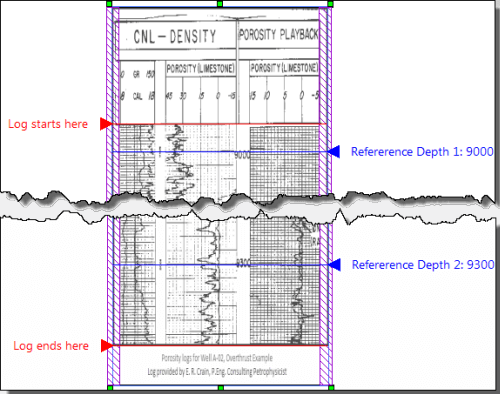

New raster logs

Import depth-registered raster logs, import unregistered raster logs and then depth-register them and pick layer tops, and create cross sections from raster logs. Strater 5 makes it easy to take your paper logs and use them with digital data to make informed decisions.

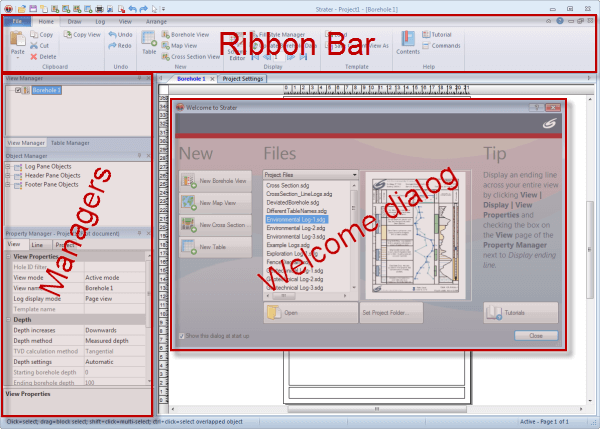

User interface enhancements

Find commands more easily with the new ribbon bar user-interface. Additionally, use the new Table Manager to simplify your project, navigate to properties more confidently with the redesigned Property Manager tabs, and use the new Welcome to Strater dialog to quickly and easily begin a new project or recall an existing one.

Fill Style Editor and Manager

Strater 5 has added even more customization opportunity with the new Fill Style Editor and Fill Style Manager. Use the Fill Style Editor to create and save custom fill styles, and then view and manage predefined and custom fill styles in the Fill Style Manager.

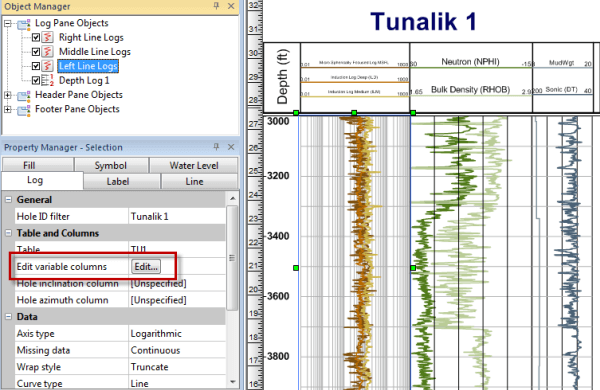

Line/Symbol log improvements

Strater 5 has added much functionality to line/symbol logs. You can now add new curves to existing line/symbol logs so that all overlain logs are moved and optionally scaled together, and you can link the scale bar line color to the log line color.

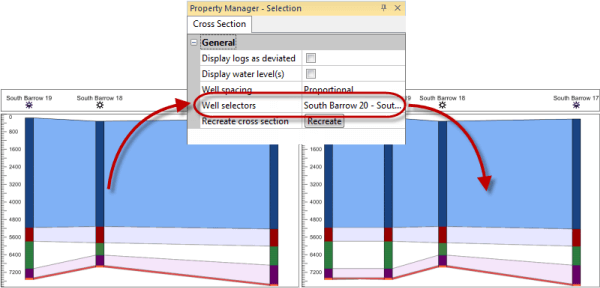

Add well to cross section

Forgot to add a specific well to your cross section? Not sure what combinations of wells the client wants to see? No problem! Strater 5 allows for the addition of wells to pre-existing cross sections. Just edit your well selector line and then click the Recreate button for the cross section, or else create a new well selector line and choose it for your cross section.

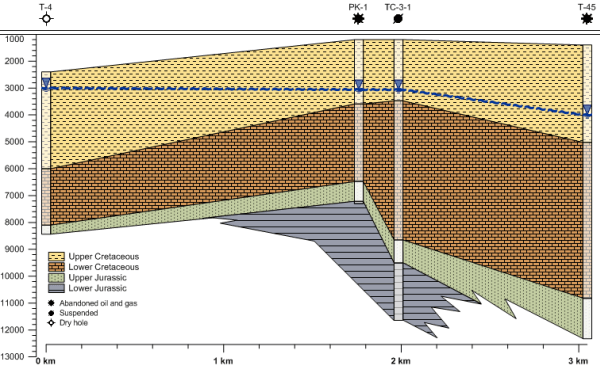

Water Level

Display water level symbols on your logs without having to overlay post logs, and connect the water level symbols on cross section logs with a water level line to give the most accurate representation of the subsurface.

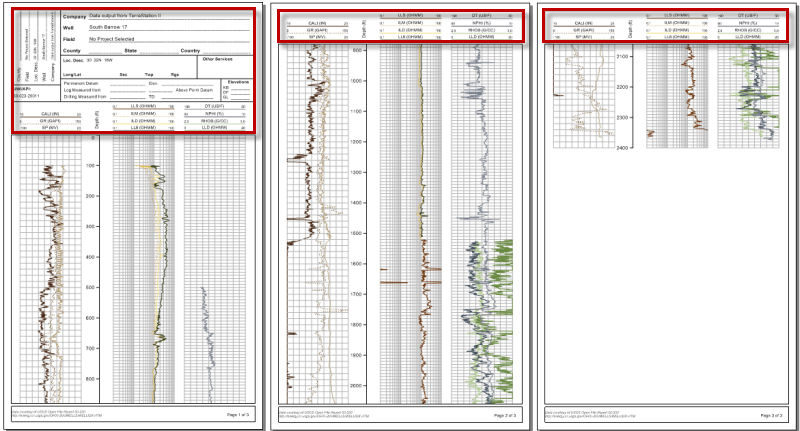

Customize headers/footers by page

Display a larger header pane on the first page, and display certain header/footer information only on the first page, so you can include all the information you need on the first page, and then streamline subsequent pages to just include the basics.

Miscellaneous log improvements

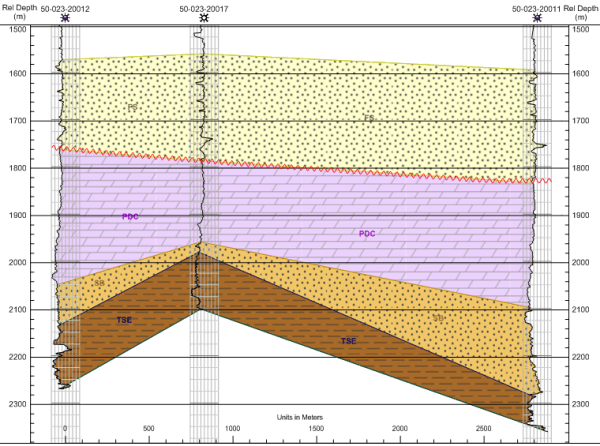

Strater 5 has added many improvements to log types, including the ability to have much bigger tick marks for depth logs, so you can show a depth grid across your view, and the ability to repeat complex text log items that straddle a page break on both pages.

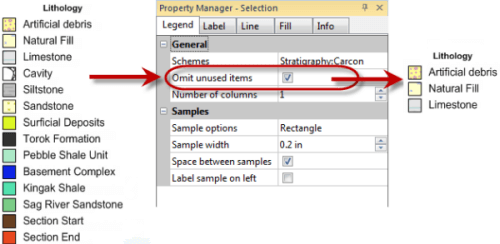

Show only legend entries that are in-use

Have a large library of scheme for your company? No problem! Strater 5 allows you to omit unused items by checking a box, so only the scheme items present in your current view are displayed.

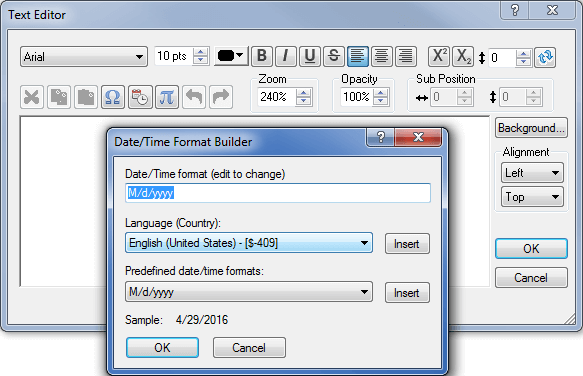

New and improved Text Editor with date/time format builder

Exercise more control over your data than ever with the new Text Editor. Use the new Date/Time Format Builder to create custom dates and times in the exact format you want, or choose from the list of predefined formats for your region now that Strater automatically recognizes your computer’s locale.

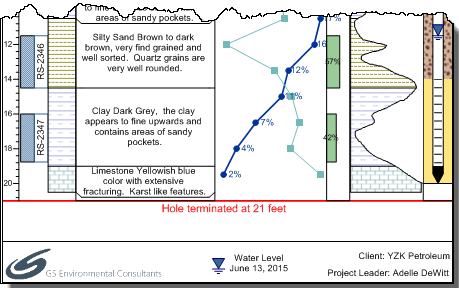

"End of log" line

Display a line at the end of your logs to indicate where the end of the hole was and separate out an area for additional notes.

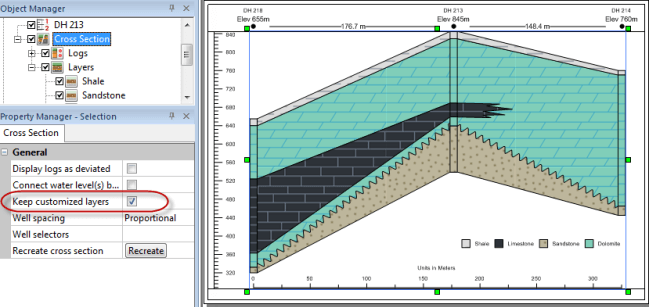

Keep cross section layer customization

Strater allows for the flexibility of reshaping cross section layers if the defaults don’t match your understanding of the subsurface, but certain actions cause the layers to be redrawn. Rather than being prompted each time the cross section will be redrawn, Strater 5 allows you to check one checkbox to always keep your customized cross section layers.

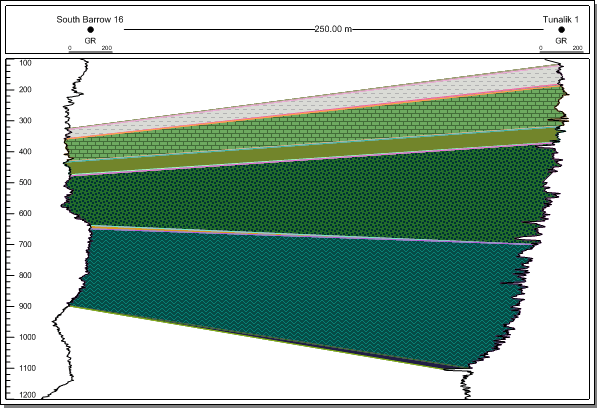

Improvements to cross sections from line logs

Strater 5 has added many improvements to cross sections from line logs that help you to get the exact output you need. These include the ability to show well traces as deviated, the ability to add linked scale bars to the logs, and the ability to draw layers horizontally across all logs.

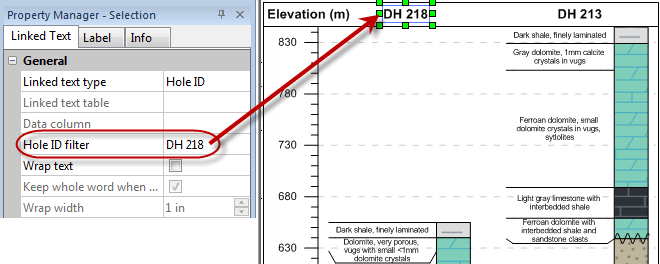

Linked text Hole ID filter

Have multiple boreholes in your borehole view? No problem! Strater now allows you to specify a Hole ID filter for applicable linked text items, so you don’t have to manually type what you’ve already entered into data tables.

New and improved import/export formats

Take advantage of the newly available or enhanced import and export formats!

导入

  • Google Earth KML/KMZ
  • Zipped Shapefiles (e.g. SHP in TAR.GZ)
  • GPX GPS files
  • XML, LIC, and DRA registration files for raster logs
  • 56-bpp Landsat-based GeoTIFF
  • TIFF: Support for YCbCr color format
  • ECW/SID: Import without reducing resolution
  • ECW/SID: Import subset with default "Region selected for import" set to image extents
  • PDF: Increased DPI
  • MID: Open files in worksheet
  • Workaround to assign missing datum to TIFs with Popular Visualisation Sphere as the ellipsoid
  • TIF: Support for #383 flag indicating fourth channel is not alpha
  • GSI: Support raster and gradient fills
  • DAT/TXT: Added Locale options (Language and Date order) to Data Import Options dialog

导出

  • Google Earth KML/KMZ
  • SVG Scalable Vector Graphic file
  • GeoJP2
  • JPEG2000 (JP2)
  • TIFF: Transparency support
  • PDF (Vector): Total transparency support
  • PDF (Vector): Compression option
  • PDF (Vector): Partial transparency support for image fill patterns
  • PDF (Raster): Page size option
  • GSI: Export symbol properties
  • GSI: Embed coordinate system
  • BLN: Add blanking flag option
  • DXF: Support rendered marker symbols
  • GSI: Support transparent curves/areas
  • Export cross section to Voxler: increased resolution
  • GSI: Improved alignment of multiple lines of text
  • EMF: reduction in output file size
  • SVG: reduction in output file size
  • Improved scaling of GDI+ stock patterns

New and improved coordinate systems

Strater 5 has added the ability to search for a coordinate system by name or EPSG code in the Assign Coordinate System dialog. Additionally, it has added these new coordinate systems, projections, and datums:

  • SIRGAS-ROU98 / UTM zone 22S (EPSG 5383)
  • Sri Lanka grid systems
  • SVY21 coordinate system
  • NWS-84 datum
  • Europe UTM zone 29N using European 1950 - Port./Spain datum
  • Mount Eden Circuit 2000 projection
  • Sweref99 coordinate system
  • Posgar94 coordinate system for Argentina
  • More Australian grid coordinate systems
  • GCS Idaho Transverse Mercator
  • RGF93 / CC (zones 42-50) French coordinate system
  • French coordinate systems with one standard parallel (Lambert I-IV, France I-IV, Lambert Corse, Lambert Sud France, Lambert Centre France, Lambert Nord France, Nord De Guerre)
  • Jamaica National Grid
  • WGS84 Web Mercator (900913) and WGS84 Web Mercator (EPSG 3857)

Additional Features

  • Save tab visibility to SDG file
  • Navigate to a specific page number
  • Bulk-edit shared properties for multiple objects at once
  • Import and save formatting in tables
  • Option to turn off case-sensitivity for schemes
  • Handles controlling log width now always in center of window
  • Rotate well header labels
  • Display well names at well bottoms or tops
  • Added Find/Find Next search bar to Well Selector Editor dialog
