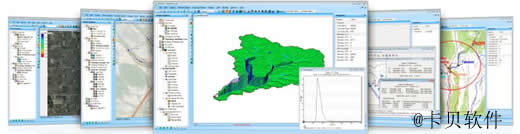

WMS 11-专业水文处理软件|Watershed Modeling System

一维,二维,液压和分布式水文模型的领先解决方案。 Aquaveo WMS包括地形数据处理功能强大的工具,池自动划分,计算几何参数。

Aquaveo WMS是基于GIS 的专业水文处理软件,提供水文模拟全过程的工具。包括流域、子流域的自动生成、几何参数的计算、水文参数 (如汇流时间、降雨深等 )的计算等 ,并能实现模拟结果的可视化。WMS可以使用矢量地图、DEM、TIN等格式的数据来进行地形分析和水文模拟。嵌入了多种传统的概念性水文模型 ,包括 HEC- 1、NFF、TR-20、TR-55、Rational Method、HSPF等 ,根据自动提取的流域参数进行水文模拟 ,可以用于洪水预报、水库设计、城市规划等。

Harness the entire spectrum of watershed analysis tools with WMS - the all-in-one hydrologic and hydraulic solution.

完整的一体化流域解决方案
  • GIS Tools
  • Web-based data acquisition tools
  • Terrain data import and editing tools
  • Automated watershed delineation & hydrologic modeling
  • Support for the most industry standard hydrologic models
  • Step-by-step hydrologic modeling wizard
  • Hydraulic modeling & floodplain mapping
  • Storm drain modeling
  • 2D (Distributed) Hydrology
  • Integration with FHWA hydraulic calculation software
  • Export WMS animations to GoogleTM Earth
自动流域划分和水文模拟
  • Automatically delineate a watershed and sub-basins using digital terrain data
  • Automatically compute geometric basin data such as area, slope, mean elevation, maximum flow distance and more
  • With a small amount of input, compute hydrologic basin data such as time of concentration, curve number, and infiltration parameters
  • Industry standard equations for computing sub-basin lag times and times of concentration are included with WMS
  • Add any number of interior outlet points and let WMS subdivide the watershed automatically
  • Manipulate stream networks to represent man-made features or proposed changes to the watershed
  • Override derived basin boundaries to match your knowledge of the watershed
支持大多数行业标准水文模型
  • A license of WMS Floodplain or greater includes an interface for the following industry standard hydrologic models:
    • HEC-1
    • HEC-HMS
    • TR-20
    • TR-55
    • Rational Method
    • MODRAT
    • OC (Orange County, California) Rational
    • OC Hydrographic
    • HSPF
    • National Streamflow Statistics
    • Convert and compare the results of a watershed developed for one model with any of the other models supported in WMS
    • Read and compare observed hydrographs with computed hydrographs
水力建模和洪泛区绘图
  • Define a stream centerline and bank stations
  • Define cross section locations
  • Automatically cut cross sections and derive Manning's roughness values from elevation and ground material data
  • Export cross sections to the HEC-RAS or Simplified Dam Break hydraulic models
  • Run the hydraulic model and read the water elevations back into WMS
  • Read water surface elevation data from a hydraulic model or manually input known water surface elevations
  • Create flood extents and flood depth maps using digital terrain data and water surface elevation data points
  • Link the peak flow or complete hydrograph from any of the WMS-supported hydrologic models to an HEC-RAS hydraulic model
暴风雨排水模型
  • Draw a storm drain network or import a network from GIS
  • Compute elevations, lengths, and slopes of pipes from underlying elevation data
  • Link the storm drain network to your hydrologic model data
  • Export the hydrologic model data and the storm drain network to EPA-SWMM or XP-SWMM
  • Import existing EPA-SWMM or XP-SWMM files into WMS

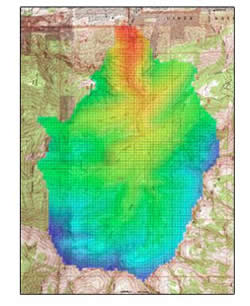

2D (Distributed) hydrology

  • WMS supports 2D models:
    • The US Army Corps of Engineers (USACE) GSSHA model
    • The HMS version of the quasi-distributed MODClark method
  • Flood forecasting (depth and velocity over entire 2D domain)
  • Thunderstorm (localized rainfall) flood analysis
  • Surface ponding and infiltration analysis
  • Wetland modeling
  • Land use change impact modeling
  • Groundwater/surface-water interaction modeling
  • Sediment and contaminant modeling

Import what you need

  • USGS DEMs - download and use any format of DEM from the USGS
  • USGS NED data - seamless elevation data can be downloaded and read into WMS
  • ArcGIS Raster (ASCII format) - read elevation or attribute data in gridded format from ArcGIS
  • ESRI Shape files - read all shapes and attributes into WMS
  • DXF and DWG CAD files - WMS now supports the latest versions of DXF and DWG
  • TIFF, JPEG image files - /images along with geo-referencing information can be read by WMS
  • Any data supported by ArcGIS can be read into WMS (ArcGIS license required, compatible with ArcGIS 10.0)
WMS 11系统需求
  • 操作系统: Windows 7, Windows 8/8.1 or Windows 10
  • 内存: 4 GB (8GB or more recommended)
  • CPU: WMS软件是CPU密集型的。 与WMS集成的某些型号和实用程序可以同时利用多个处理器内核。 我们建议您的预算允许最快的CPU。
  • 图形卡: 要启用所有显示功能,必须支持OpenGL 1.5或更高版本。 强烈建议使用专用图形卡。 集成显卡通常是有问题的。
  • 分辨率: 1920 x 1080 or greater
